High resolution video panel VS2 1000NITS RGB IP20

1 of 5

Pannello video ad alta intensità VS2 1000NITS RGB IP20

EAN Code: 818651027983

Manufacturer Code: 1226300150

Category: Video

Brand: Adj

On request

Shipping starting from 12.90 €. Click here for more info

Price list:

€ 1.007,29

Choose quantity:

Total:

€ 1.007,29

PRICES WITH VAT INCLUDED

Add to cart

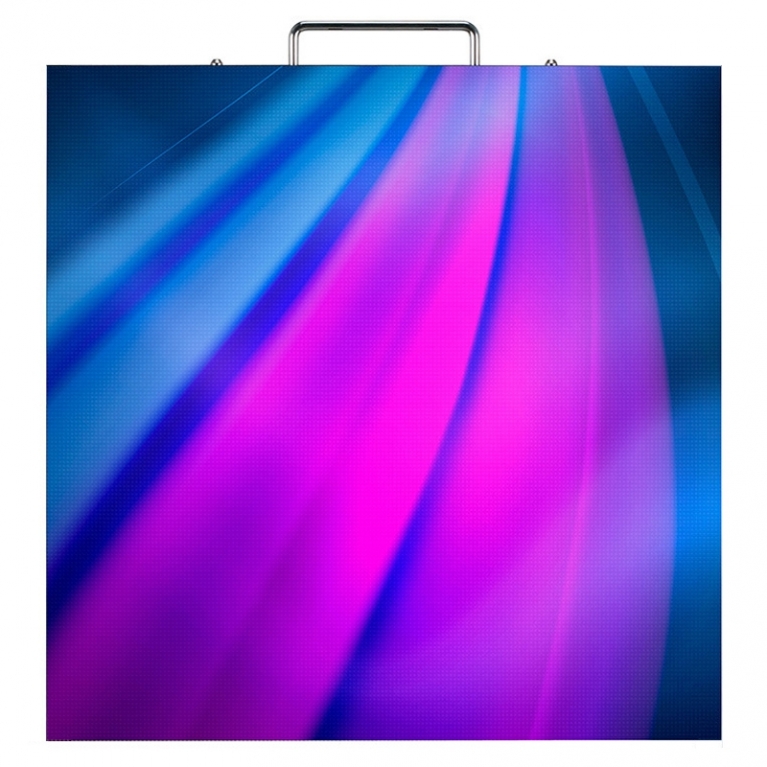

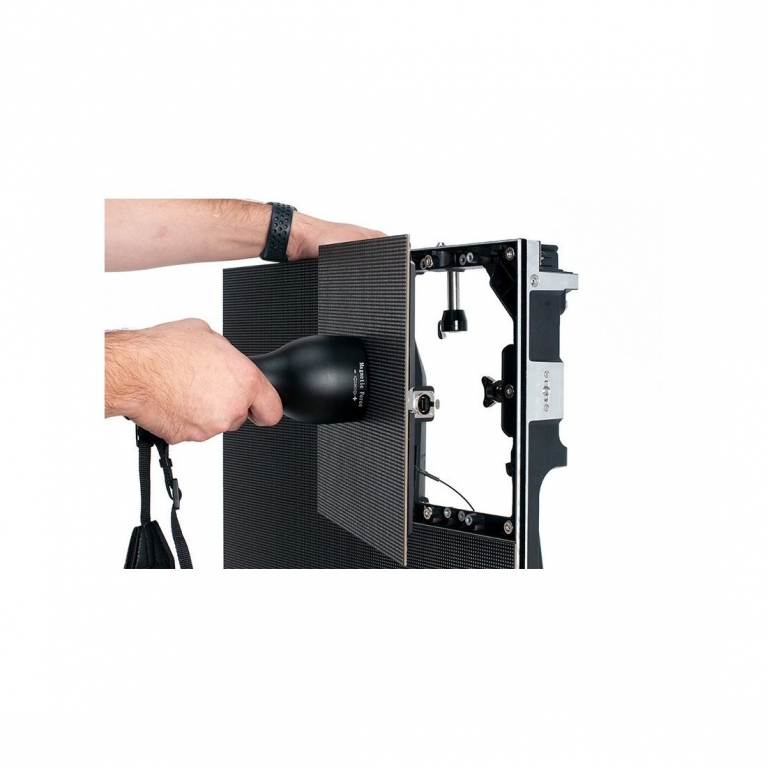

VS2 is a high-resolution video panel of the ADJ’s Vision Series with the highest quality LED binning and bright, clear output, and a magnetic aluminium frame with built-in corner protectors. Each panel has 4 individual mini (250x250 mm) modules for quick and easy servicing (front and rear serviceable). The VS2 connections include Locking Power In/Out and Locking RJ45 In/Out.

Features:

Optics

Brightness: 1000 NITS

View Angle: Horizontal 160°/Vertical 140°

Gray Scale / Display Color: ≥14-bit / 256

Brightness Adjustment: 0~100% 100 Levels

Contrast Ratio: 5000:1

Processing: 14-bit

Source

Light Source: LED RGB SMD212

Pixel Density : 168 x 168 pixels, 112896 per square meter

Average LED lifetime/MTBF : 50,000 hrs./5,000 hrs

Pixel Pitch: 2.97mm

Gaps < 0.5mm

Control

Built-In Novastar A5s Receiving Card

LED Refresh Rate: 3840Hz

Control Distance: Ethernet Cable 120m

Electrical

Multivoltage: 100-240V 50/60Hz

Max Power Consumption: 170 W/pannel

Average Power Consumption: 68 W/pannel

Operational temperature: from -20 to +40 degrees

Operational humidity: 10% — 90% (no condensation)
