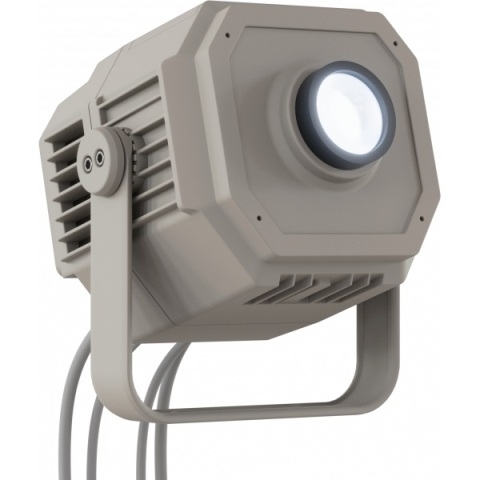

Led image projector Mosaico FX100 100W IP66 grey

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.
Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Please note that Mosaico FX100 do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.

TECHNICAL SPECIFICATION:
LIGHT SOURCE
Source:100 W high-power white LED
CCT: 8000K
Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS
▪Optics:interchangeable, high definition (15°, 30°, 50, 70°)
Focus: manual

COLOUR SYSTEM
Colour wheel: included 1 color holder accessory for 1 color (color not included)
Colour wheel: optional color wheel with 5 colors included on board (Light Orange, Light Green, Yellow, Aquamarine, Pink)

DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Animation wheel: included 2 interchangeable wheels with indexing and CW and CCW rotation with variable speed
▪ Rotating gobos: included 1 gobo holder with manual adjustable index position system for 1 gobo (gobo not included)
▪ Gobo size (BW):outer: 26,9 mm - image: 22 mm
▪ Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
▪ Fixed gobos: optional gobo wheel for 5 gobos + open (gobos not included)
▪ Static mode: selection of static dimmer and effects rotation mode

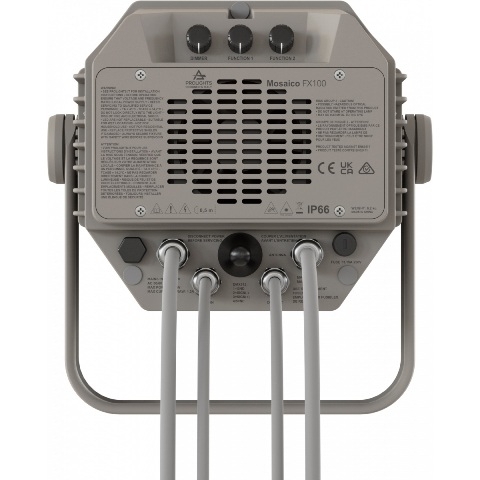

CONTROL
Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
Stand Alone:3 push encoder
DMX channels: 8 channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: user interface through DATAMASTER external coder (not included)
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS
Dimmer: linear 0 ~ 100%, electronic and manual knob dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter:1-30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption:127 W

CARATTERISTICHE FISICHE
Body colour: Gray (RAL 9006)
IP rating:66 for outdoor installations
Cooling: active, silent operation
Suspension and fixing: bracket for hanging and positioning
Adaptors: XLR and BARE END 16A adaptors included
Signal connection:35 cm moulded IP signal IN/OUT connectors
Power connection:35 cm moulded IP power IN/OUT connectors
Dimensions (WxHxD):224x261x221 mm

CERTIFICATIONS / APPROVALS
certification/ Approvals: CE, UKCA, RCM
