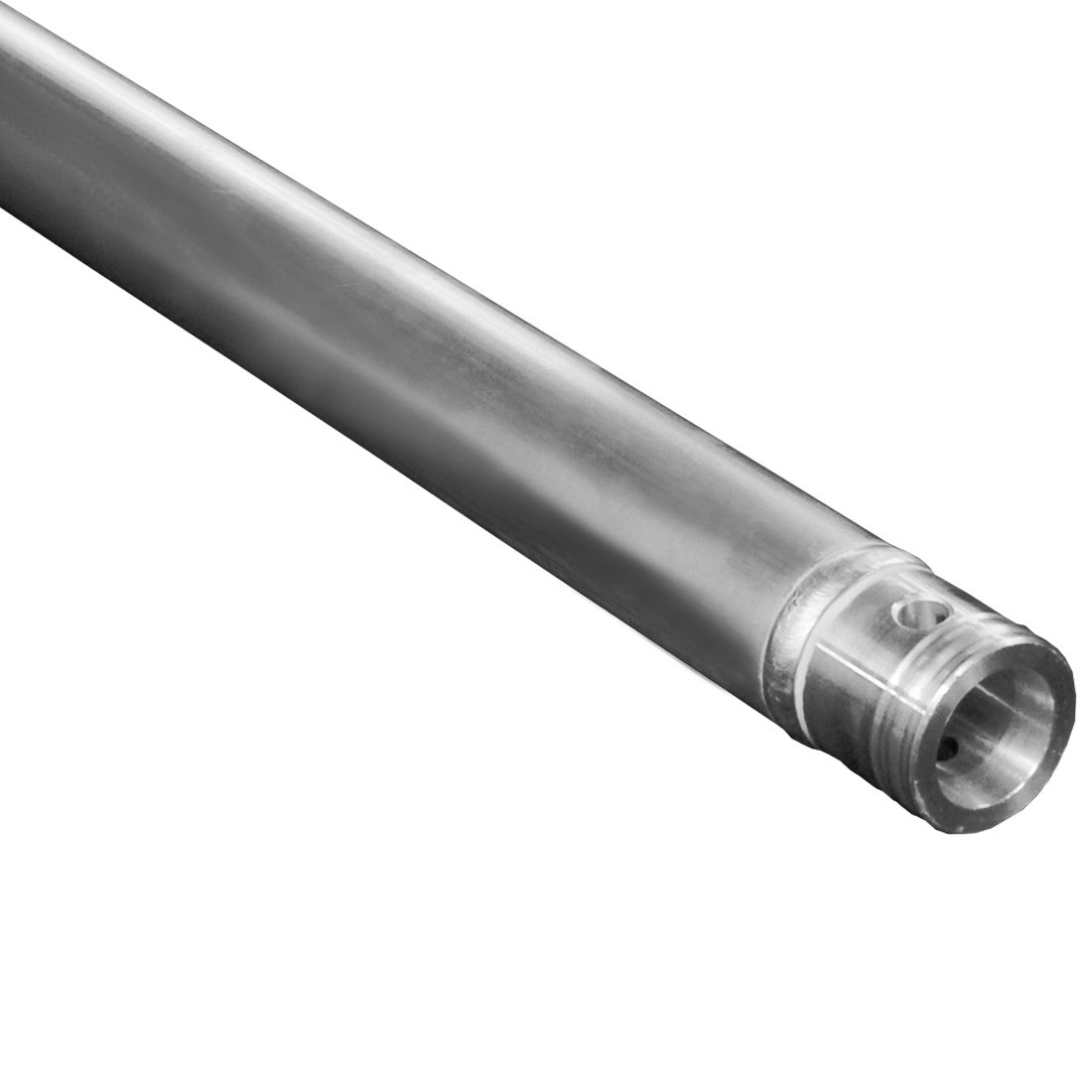

Single tube truss DT 31/2 75 cm

The DT31 is a 1-point trussing system, also referred as a "pipe", which is connected to a conical connector, bolt and split pin. The advantage of the quick connector system lies in the fact that it closes force-lockingly with the belt tube and allows rapid assembly during frequent assembly and dismantling.
The belt tube of 50 mm aluminum tube with a wall thickness of 2 mm gives this system an excellent weight-bearing capacity ratio. Specifications:
- Diametrics main pipe: 50mm
- Wall thickness: 2 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Included in delivery: 1 cone, 2 steel pins, 2 safety clips
- Length: 750mm (without cone)
- Width: 50 mm
- Height: 50 mm
- Weight: 0,5 kg
