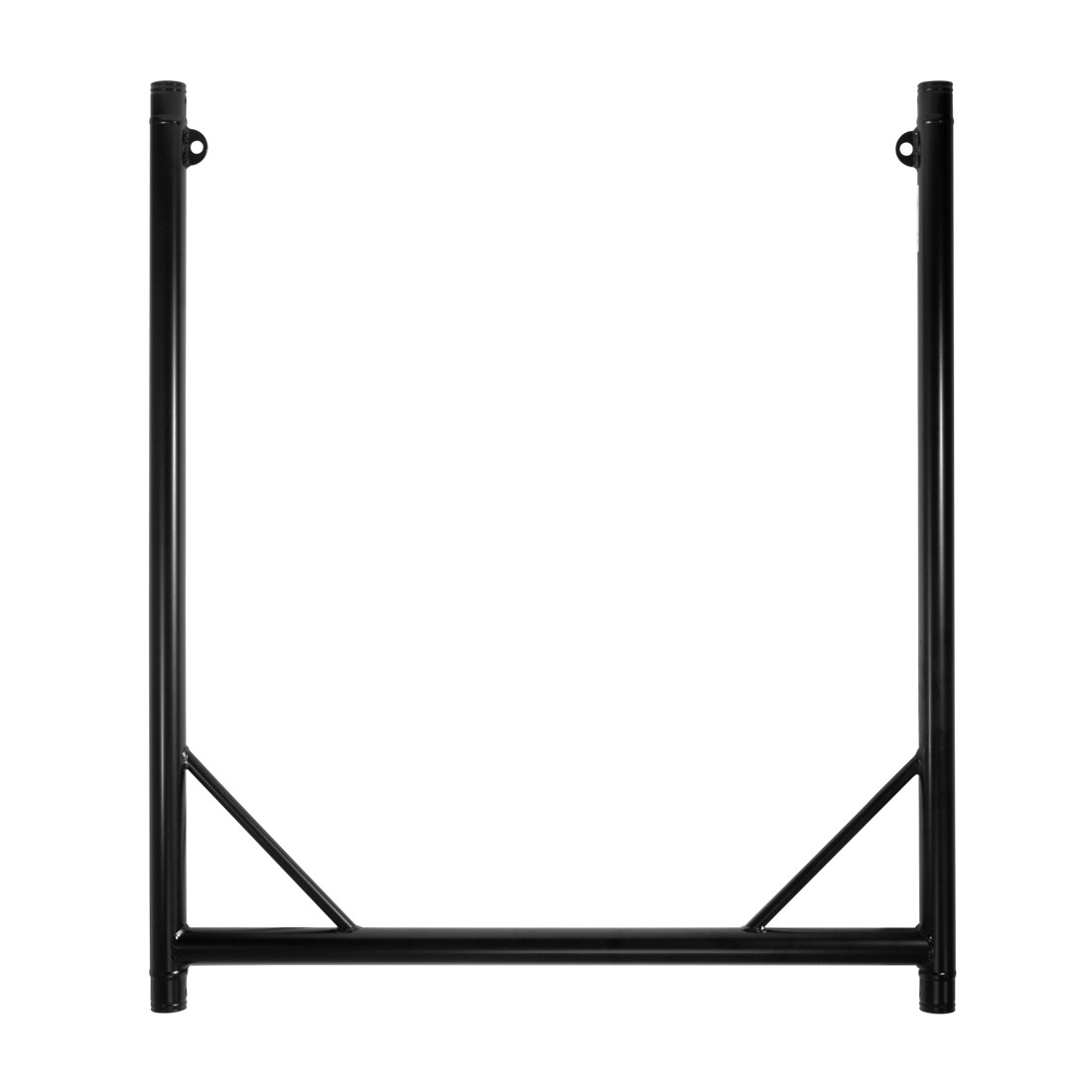

Suspension module U-frame 100 black
Manufacturer Code: 1724300023
This item should arrive to us at the above date and it will be shipped as soon as we have it available again.
Shipping starting from 12.90 €. Click here for more info
PRICES WITH VAT INCLUDED
The U-Frame System is a portable solution for hanging fixtures without the use of a regualar truss system . Using several U-Frames one above the other you create an effective light column for events and shows. The U-Frame can also be used as a hanging version by using a top piece or coupler with cone.
The frame is also available or in aluminium (order code 1724300005).
Specifications:
- Main tube diameter: 50mm
- Wall thickness main tube: 2mm
- Bracing diameter: 20mm
- Wall thickness bracing: 2mm
- Alloy: EN-AW 6082 T6 (AlMgSi1)
- Color: matt black RAL 9005
- Connection: conical connectors with bolt and splint
- Delivery includes: 2 conical connectors, 4 bolts, 4 splints
- Produced according DIN 4112, DIN 4113-1
- Dimensions (W x H x D): 1100 x 1250 x 50 mm
- Weight: 3,7 kg
