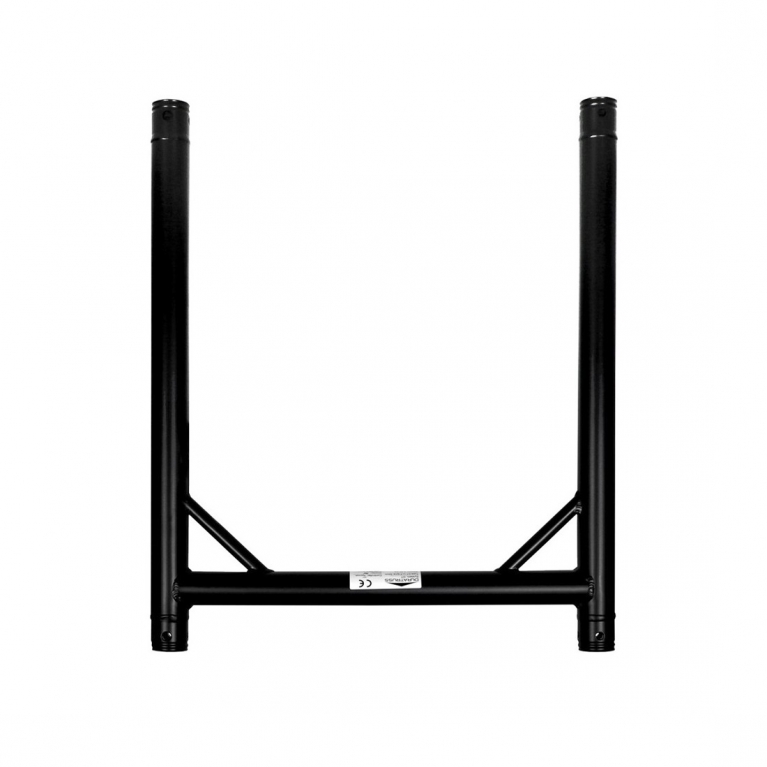

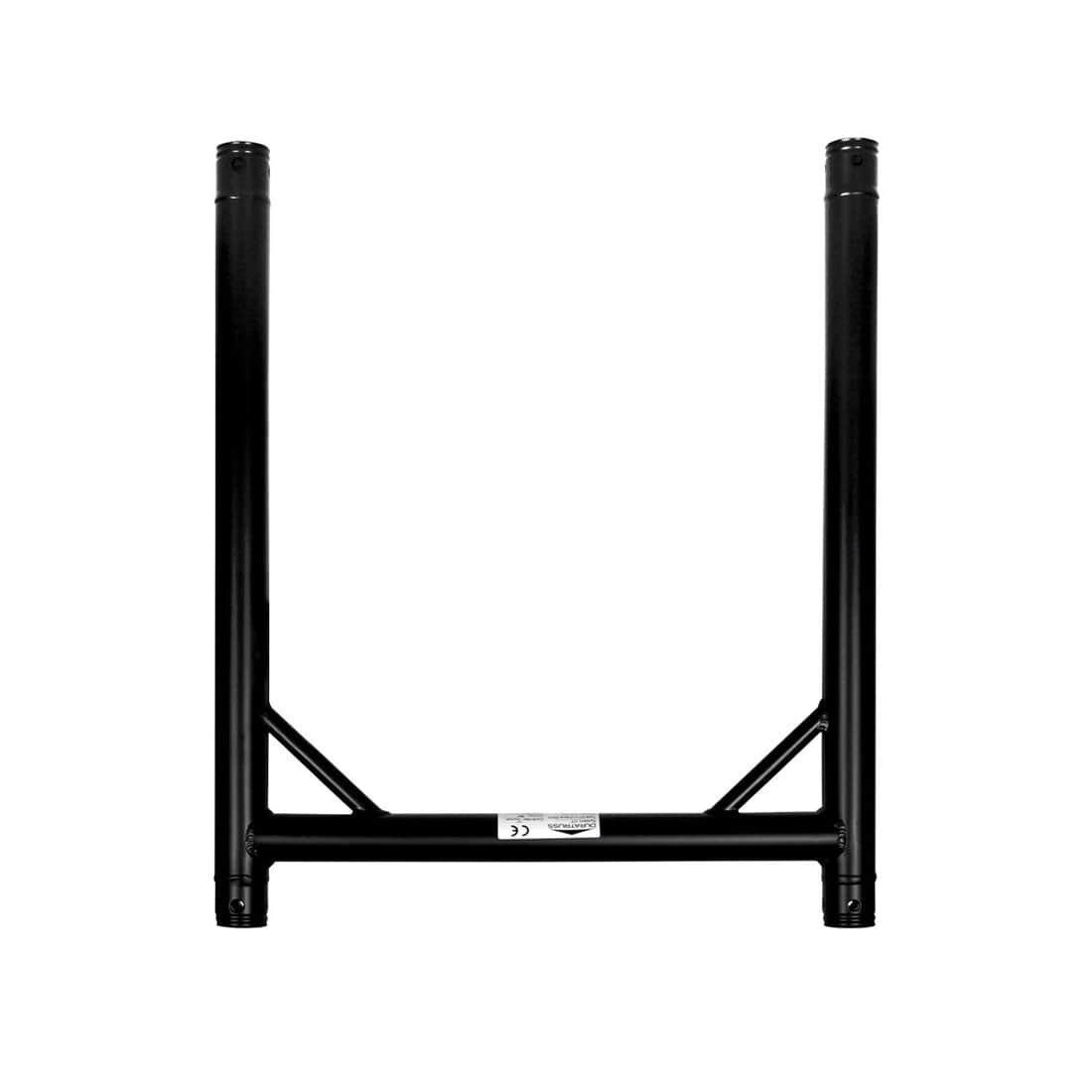

Suspension module U-frame 50 matt black

U-Frame 50 and U-Frame 50 top represent a highly flexible and completely modular and portable solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted. Using several U-Frames one above the other you create an effective light column for events and shows. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. Specifications:
- Main tube diameter: 50mm
- Wall thickness main tube: 2mm
- Bracing diameter: 20mm
- Wall thickness bracing: 2mm
- Alloy: EN-AW 6082 T6 (AlMgSi1)
- Connection: conical connectors with bolt and splint
- Delivery includes: 2 conical connectors, 4 bolts, 4 splints
- Produced according DIN 4112, DIN 4113-1
- Dimensions (W x H x D): 600 x 760 x 50 mm
- Weight: 2,3 kg
