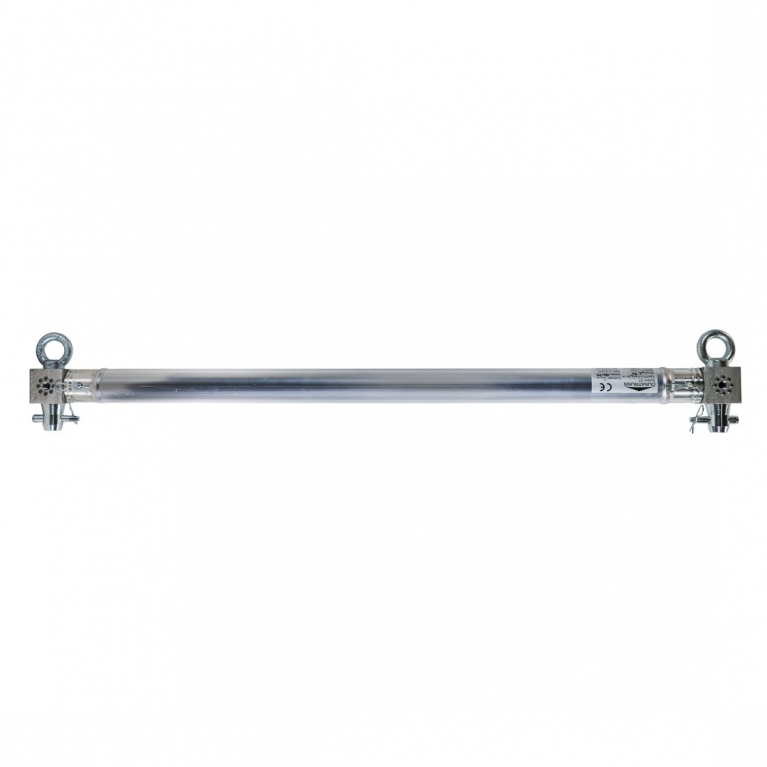

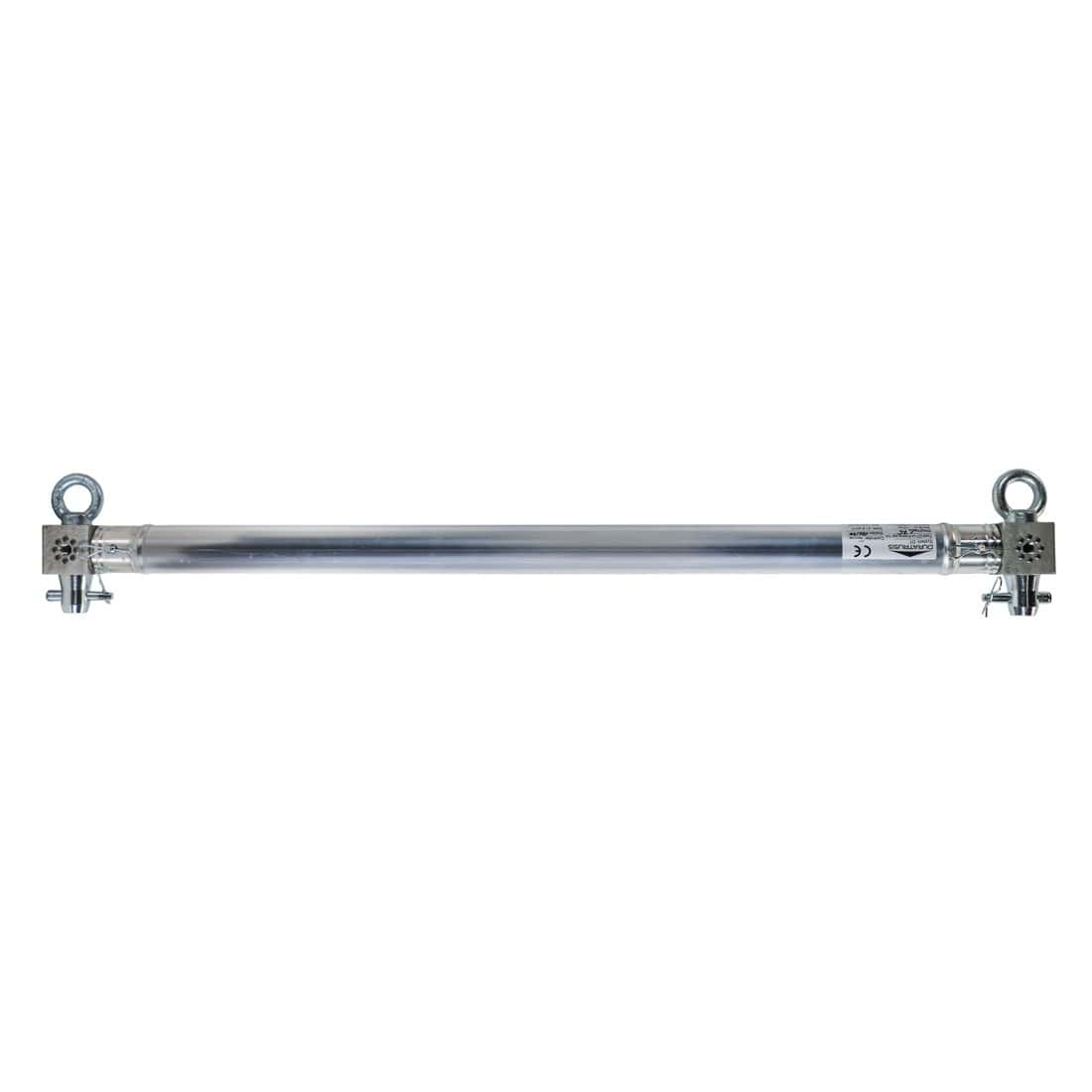

U-frame 100 top

U-Frame 100 and U-Frame 100 top represent a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.
By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. Specifications:
- Main tube diameter: 50mm
- Wall thickness main tube: 2mm
- Alloy: EN-AW 6082 T6 (AlMgSi1)
- Connection: conical connectors with bolt and splint
- Delivery includes: 2 conical half connectors, 2 bolts, 2 splints
- Produced according DIN 4112, DIN 4113-1
- Dimensions (W x H x D): 1100 x 50 x 50 mm
- Weight: 2,38 kg
