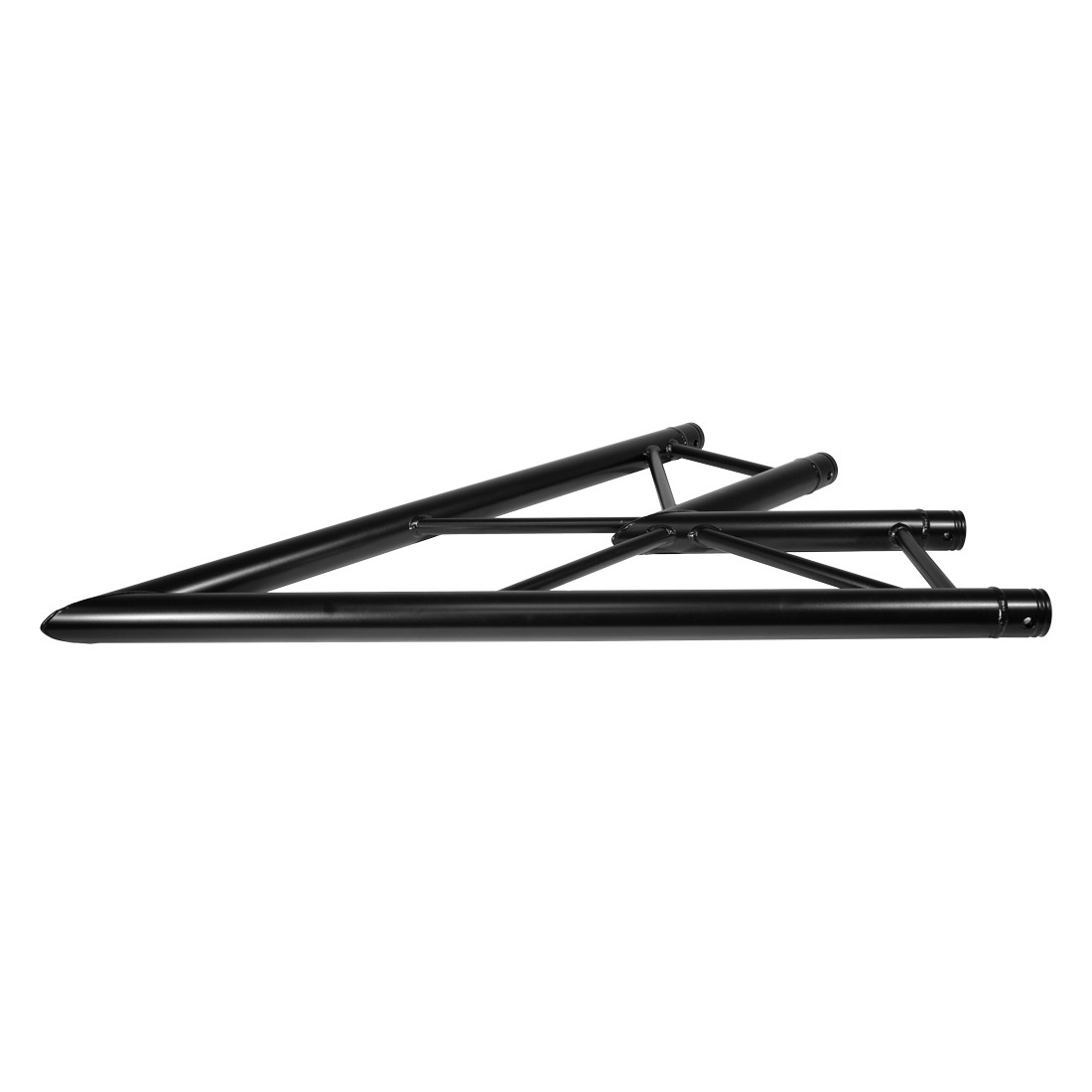

2 way corner 45° horizontal DT 32/2-C19H-L45 black

The DT32 series is one of the most popular trussing systems duratruss has ever produced. The high load capacity combined with a very low weight are the features of this 29cm series with conical coupler. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength -to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2 mm. The system also includes cones, steel pins and safety clips. The system is from European production which is compatible to the most common systems in the market and is TÜV approved. Technical specs:
- Diametrics main pipe: 50mm
- Wall thickness: 2 mm
- Dimensions braces: 20 x 2 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Color: black RAL 9005
- Length: 1000 mm
- Width: 1000 mm
- Height: 50 mm
- Corner: 45° horizontal
- Weight: 3,3 kg
