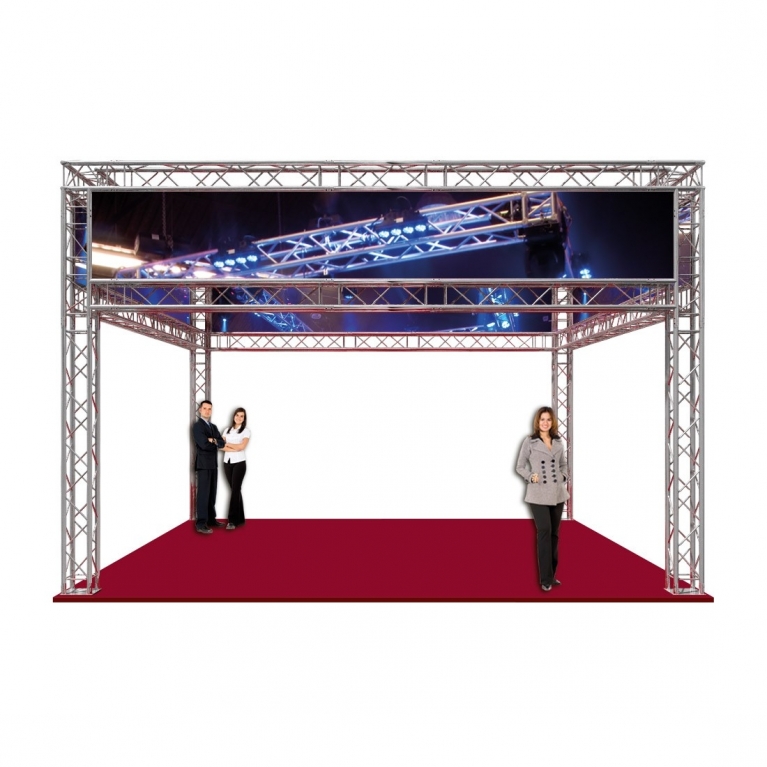

DT 34-Show System 09 Model A

System 09 Model A realised with truss of the DT34. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The system also includes cones, steel pins and safety clips. Technical specs:
- Length: 6000 mm
- Width: 6000 mm
- Height: 4000 mm

4 DT 34-050 (1724100009)
4 DT 34-250 (1724100013)
8 DT 34-500 (1724100018)
4 DT 34-C30-LD90 (1724100017)
4 DT 34-T40 (1724200019)
4 DT 34-BPM (1724400002)
