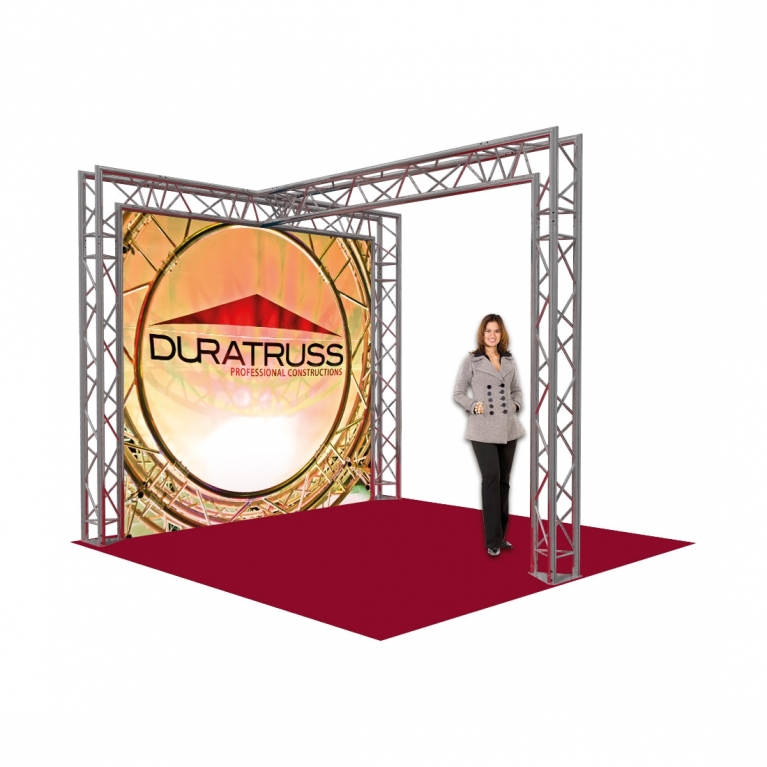

DT 33-Show System 01 Model A

System 01 Model A realised with truss of the DT33 series (a 3-point-trussing-system with conical coupler (spigot), trusspin and safety clip). The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The system also includes cones, steel pins and safety clips. Technical specs:
- Length: 3000 mm
- Width: 3000 mm
- Height: 2500 mm

2 DT 33-075 (1723100032)
4 DT 33-200 (1723100013)
3 DT 33-C25-D90 (1723200029)
1 DT 33-T36-T (1723200038)
3 DT 33-BPM (1723400005)
