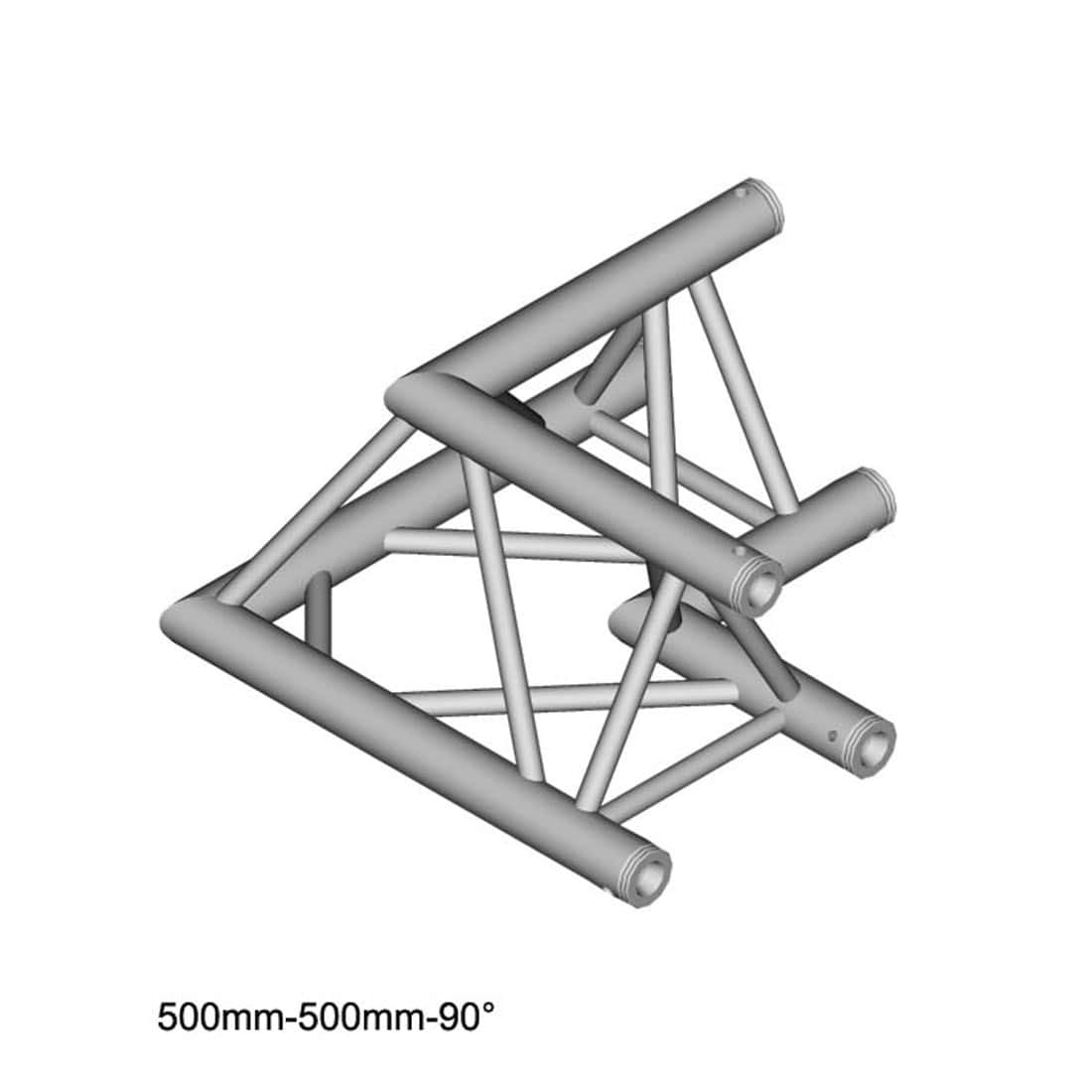

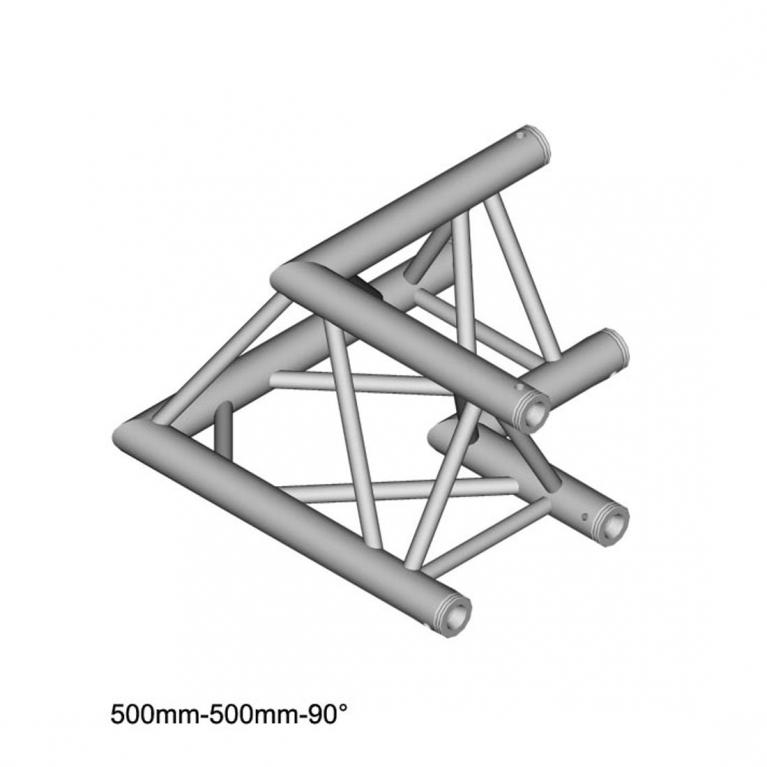

2 way corner 90° DT 33/2-C21-L90

The DT33 series is a 3-point-trussing-system with conical coupler (spigot), trusspin and safety clip. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The system also includes cones, steel pins and safety clips. Technical specs:
- Diametrics main pipe: 50 mm
- Wall thickness: 2 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Included in delivery: 3 cones, 6 steel pins, 6 safety clips
- Length: 500 mm (without cone)
- Width: 500 mm
- Height: 257 mm
- Angle: 90°
- Weight: 3,7 kg
