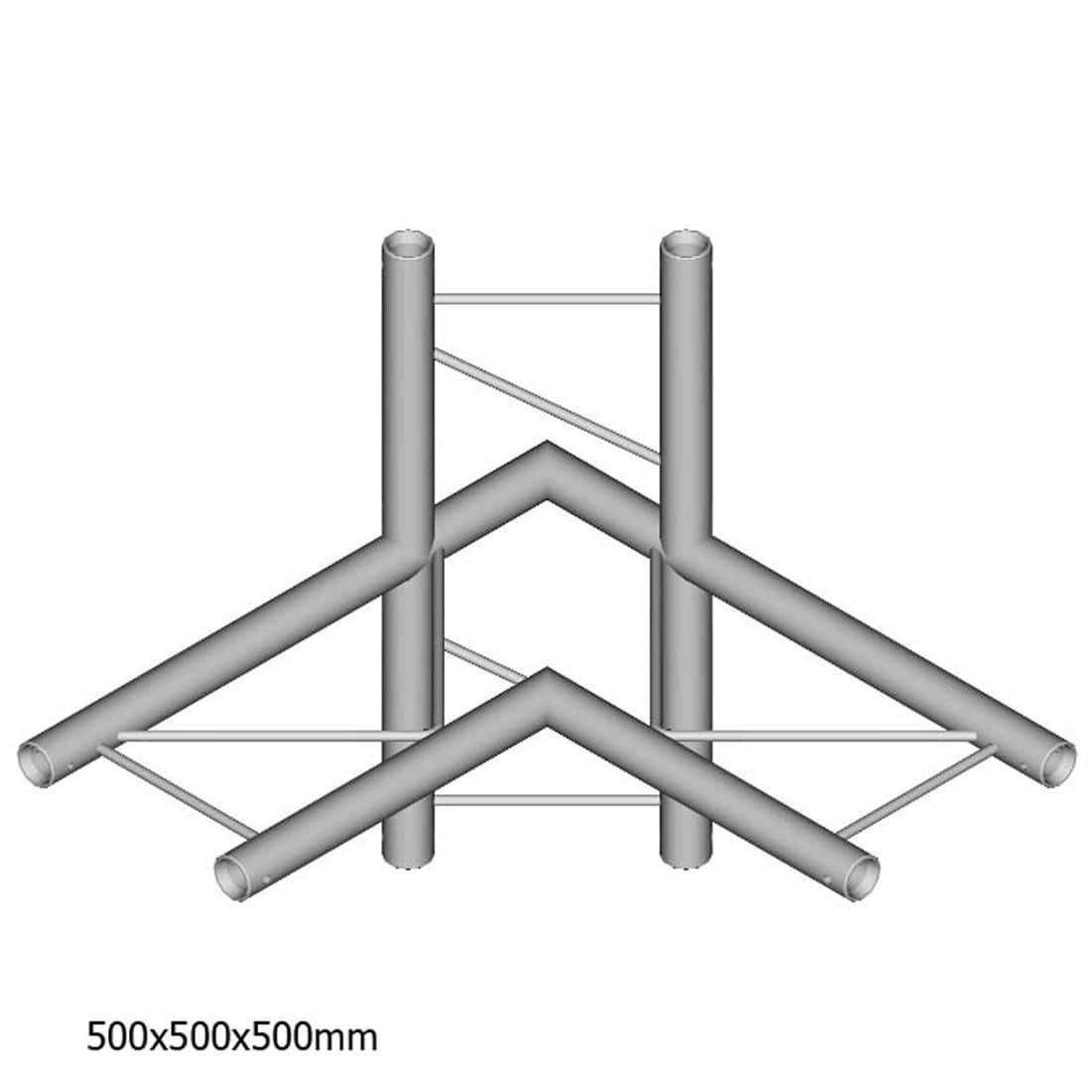

4 way corner 90° DT 22-C44H-LUD

The DT22 series is a 2-point-trussing-system with conical coupler (spigot), trusspin and safety clip. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The tubes are made of 35mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 8 mm. The system also includes cones, steel pins and safety clips.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved. Technical specs:
- Diametrics main pipe: 35mm
- Wall thickness: 2 m
- Dimensions braces: 8 mm
- Material: Aluminium EN-AW 6060 T66 (AlMgSi1)
- Included in delivery: 6 cones, 12 steel pins, 12 safety clips
- Length: 500 mm
- Width: 500 mm
- Height: 500 mm
- Angle: 90° up + down horizontal
- Weight: 1,9 kg
