DDP-405 DIMMER PACK 4 CH MAX 12A

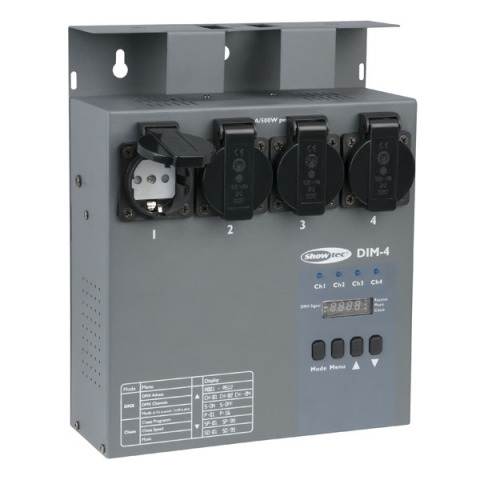

The DDP-405 or DIM-4 is a compact but powerful dimming pack. It has 4 channels which each can be loaded up to 3A Each. With a total power consumption of 8A this dimming pack can fit any socket. The DIM-4 can be fully controlled by DMX but has as well an built in chaser as well a sound-control function. Furthermore the DIM-4 set can be set in a 1-channel, 2-channel or 4-channel mode.
Specifications:
Input voltage: 230V/50Hz
Channel Output: 3A / CH., Total 8A
Control: DMX-512, Stand-alone, Music control
DMX channels: 1,2 or 4
Mode: Dim or Switch

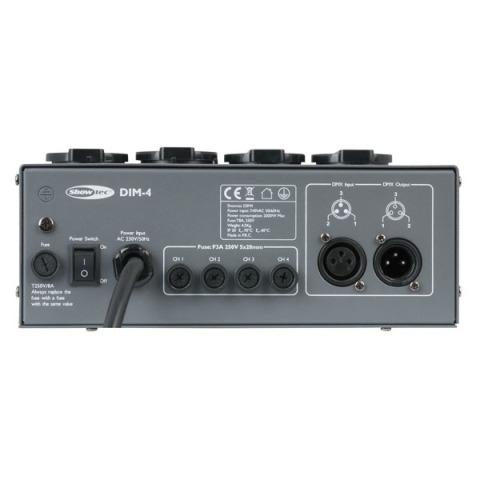

Data in/out: 3 pole XLR
Powerconnection: Shuko plug
Poweroutput: Schuko chassis per channel
Monitor: Control LED per channel, DMX signal led
Dimensions: 220 x 82 x 275 mm (LxWxH)
Weight: 3,5 kg
