Recorder Madrix Aura 8 universes

MADRIX AURA is an autonomous light controller allowing to record and restore Art-Net or sACN frames. The box offers a series of buttons allowing a very fast installation, and the configuration is done via a web page. Combined with the MADRIX pixel-mapping software, it is an ideal tool for any large-scale dynamic architectural project.
Available in 3 versions: 2 universes (AURA2), 8 universes ( AURA8 ) or 32 universes ( AURA32 ).

TECHNICAL CHARACTERISTICS
- Recording and reproduction of Art-Net and sACN frames in real time
- Plug-and-play with the other products of the brand
- Capacity: 8 universes
- Possibility of associating several devices with each other for important shows: up to 320 online universes
- Master / Slave function with automatic synchronization
- Programmable playback thanks to the internal world clock (sunset and sunrise, etc.)
- Remote control possible via http or Art-Net / sACN commands

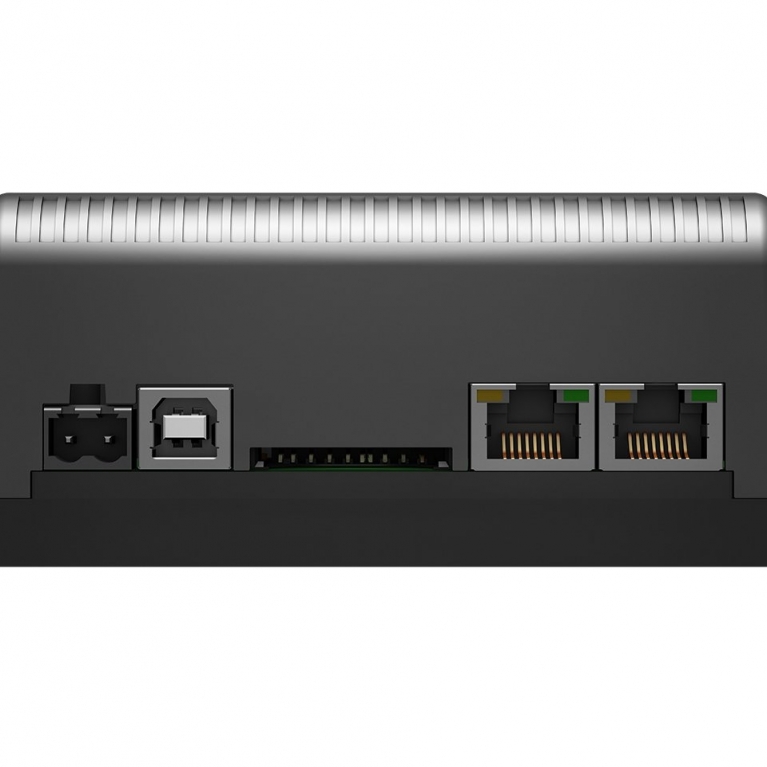

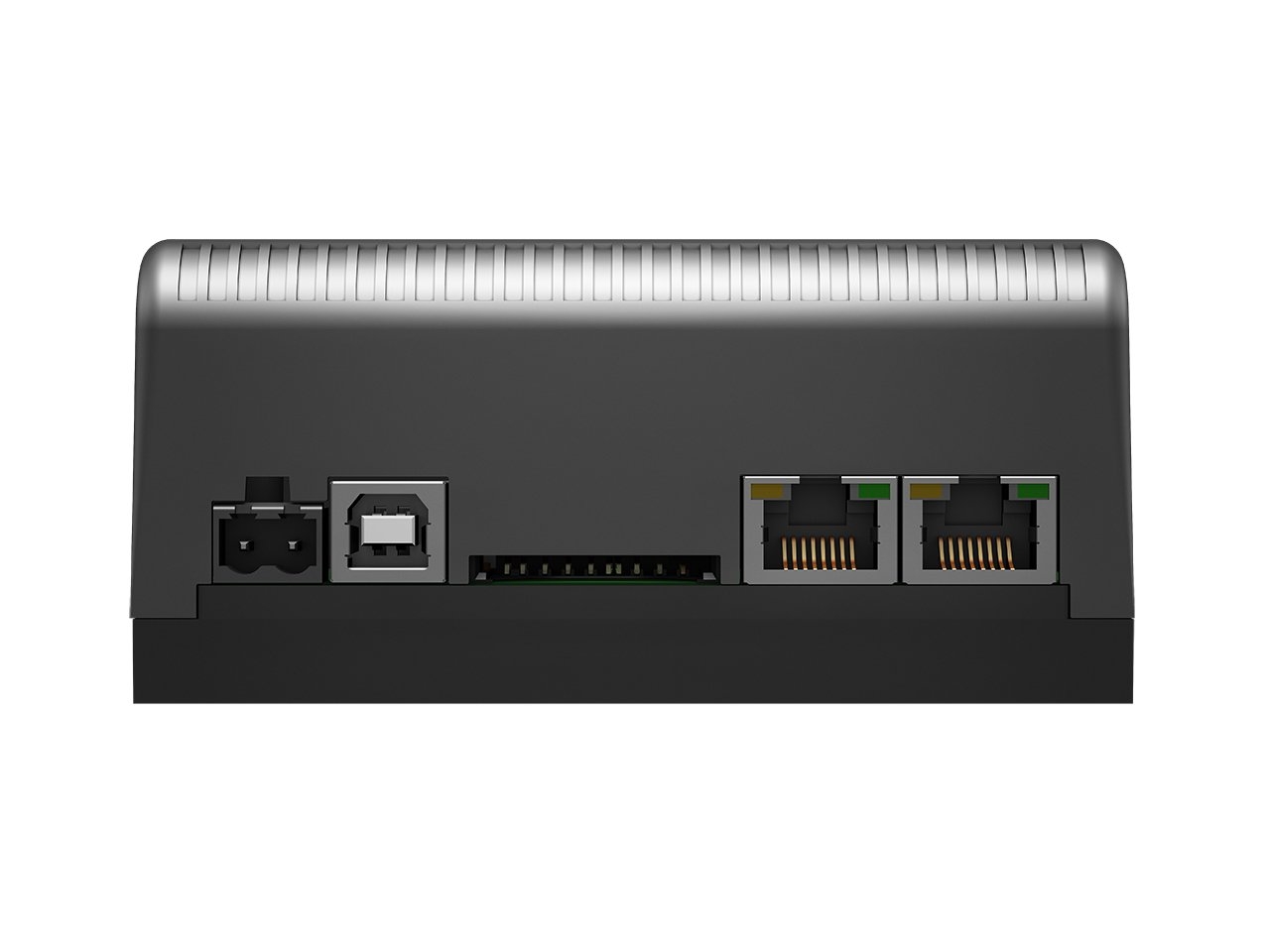

- 2 Gigabit Ethernet ports on RJ45 sockets, allowing the online association of several devices without having to install a switch
- SD card slot
- Supports SD, SDHC cards and SDXC (tested up to 64 GB)
- 1 USB 2.0 type B port
- 8 control buttons (Record, Play, Pause, etc.)
- 5 LEDs indicating operation and 4 LEDs indicating network status
- Recording length AURA 8 – 64 GB: 131 h (33 FPS) / 86 h (50 FPS)
- External power supply: 5 - 24 VDC
- Power supply via screw terminals or via USB
- Power consumption: 1.5 W max (300 mA)

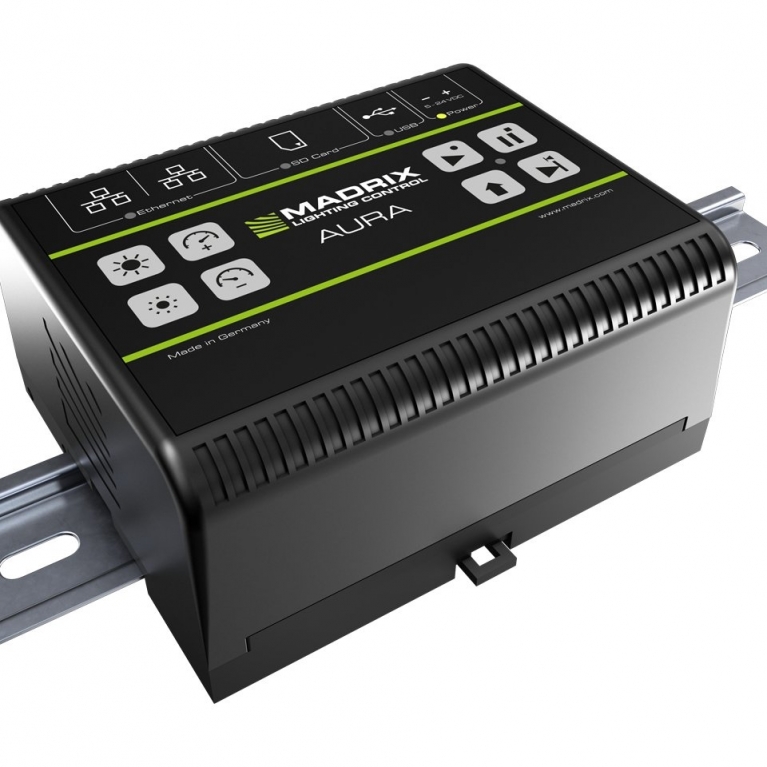

- DIN rail format

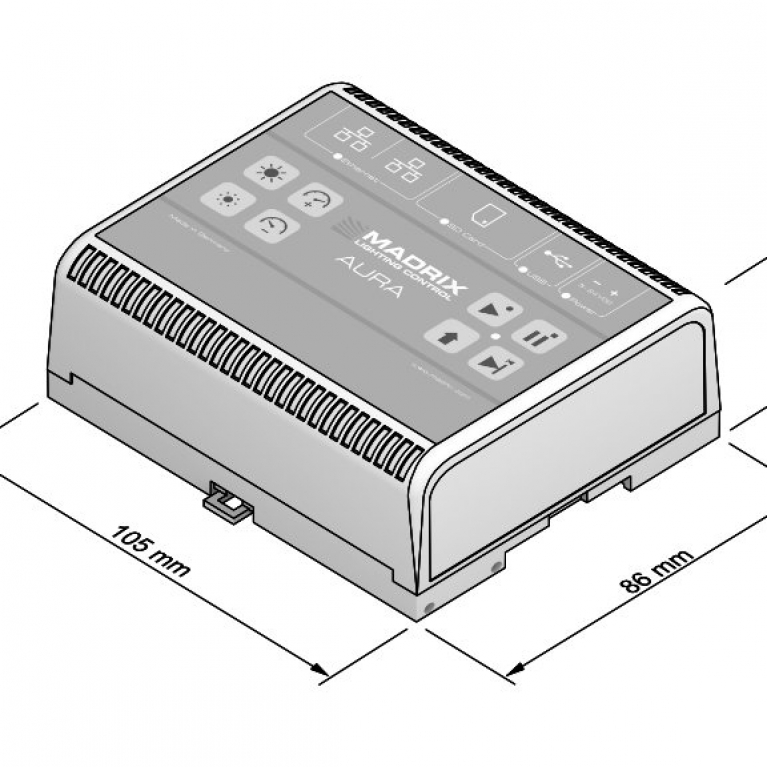

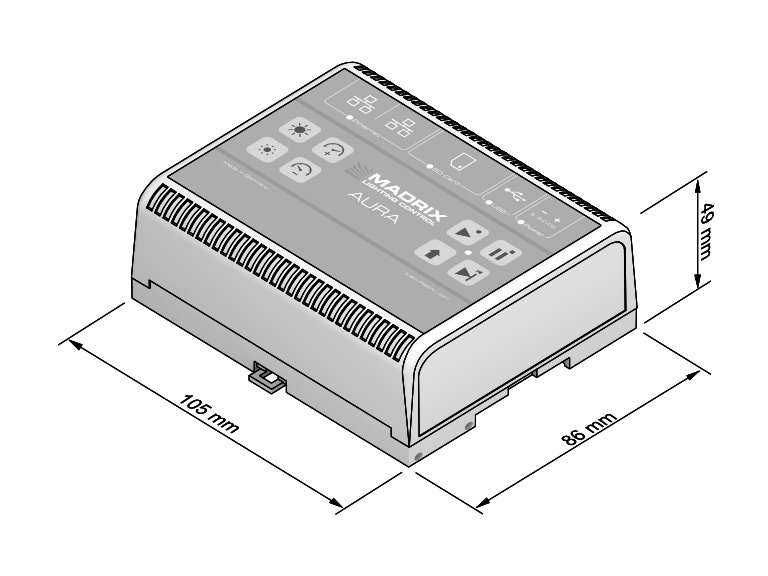

- Dimensions: 86 x 105 x 49 mm
- Rating: IP20

DELIVERED WITH
- 1 SDHC card
- 1 network cable
- 2 hooks for wall hanging
