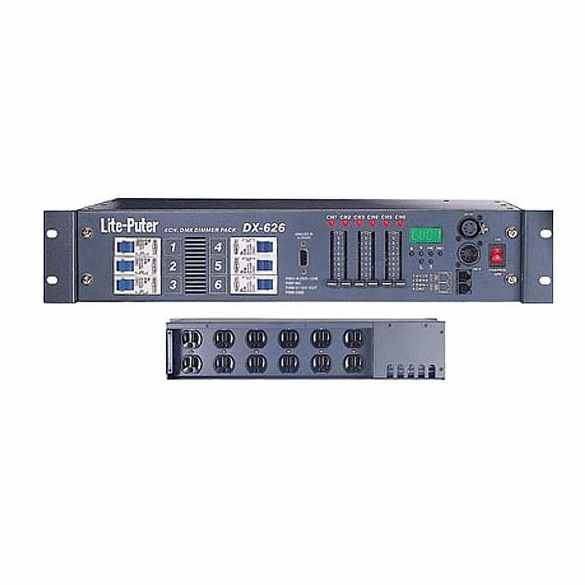

6 channel 20A dimmer pack DX-626 Lite-Puter

6 channel DMX dimmer pack unit, 20A per channel max. Universal dimmer for professional use that can work in 1 or 3 phases. You can choose between DMX or analogic control. Start address channel can be set up on the dimmer and it is possible to link together more DX-626 through DMX. Output channel on rear panel through panel connectors.
Features:
- Control: DMX-512 (IN/OUT XLR 3-5 poles, IN RJ11), analogue 0-10V DC (IN D-Type 9 Pin)
- Output connection: terminal board
- Independent selection of dimming curves for each channel
- Warm-up function for protection of loads (adjustable warm-up: 0%-6%)
- Settings and electronics control through LCD display and front keys
- Temperature sensors for automatic adjustment of ventilation and protection that will be automatically activated when the temperature is over 45℃
- Auto-tracking of frequency and phase allowing stable dimming output under different frequencies
- Automatic test function with no console connected
- Protection: 2P magnetic circuit breakers
- Power: 90-240 V, 380-400V triphase, 45-63 Hz
- Rack units: 2U
- Dimensions (WxHxD): 482x88x312 mm.
