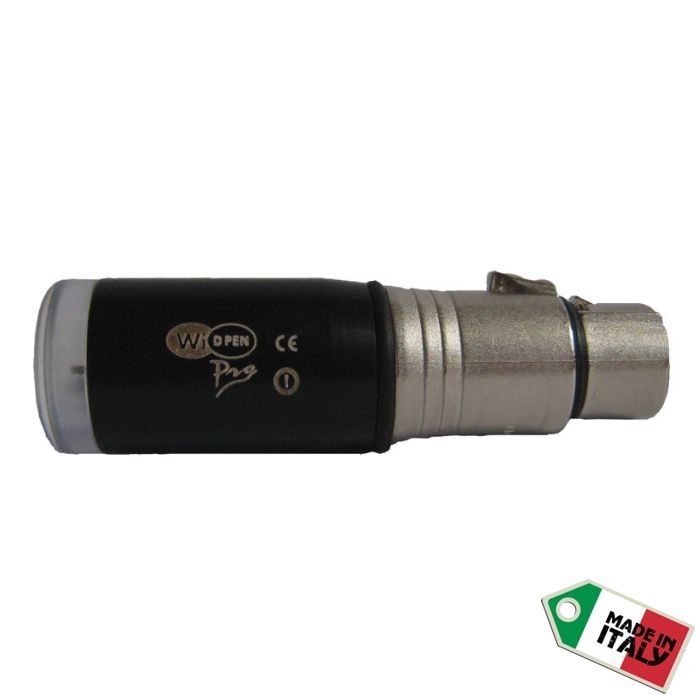

WIRELESS DMX512 RECEIVER WI D PEN PRO 5 PIN

Wi-DMX from Codem Music is a radio system for sending DMX signal without wires.
A basic system is composed of one transmitting station and one, or more, receivers.
Wi D Pen Pro 5 pin is the third generation of our wireless system. It supports the same exceptional features as the first generation, adding higher modulation speed. The system is designed for wireless transmission and reception of DMX 512 signal based on new technology in a broad band of international ISM band. It is possible to power the Wi D PEN PRO directly from the machine connected to it by eliminating the use of its power supply. Bring a wire from + 5V of the electronic board to pin 4 of the 5-pole connector. If the projector has the "pin4Power" logo, simply connect Wi D Pen without power supply.
This system will help you reduce installation time and avoid loss of DMX signal.
The system is very simple and easy to use, suitable for all types of equipment.

- Frequency range: 2.400 - 2.483 MHz (ISM)
- Number of channels: 20
- Channel width: < 3 MHz
- Radio peak power: 100 mW
- Modulation: Digital spread-spectrum
- Signal output: DMX512/1990 XLR 5 PIN
- Line-of-sight outdoor range: 500mt – 1640ft
- Certifications: FCC/CE/Canadian
- Dimensions (L x H x P) / Weight: 22x22x83mm / 70g
