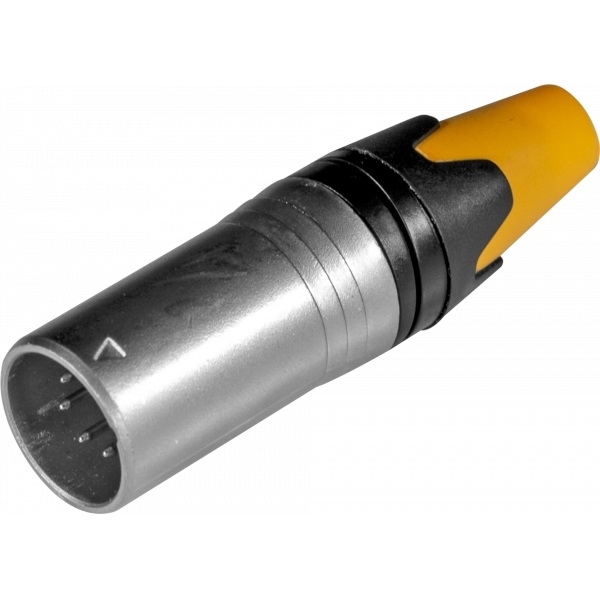

Male 5 pin XLR connector with metal body and gold-plated contacts Seetronic IP65 SC5MXXW

Male 5-pin XLR cable connector with metal body for better conductivity; long life and high reliability. Rubber cable gland with external waterproofing protection: IP65.
Innovative release button from the connection. Locking system for greater tensile strength, which increases, thus the tightness and durability of the connection.
Cable block with polyurethane gasket for high protection against bending stresses on the cable. The interior of the housing is threaded to prevent damage.
It can be used with MSC5FXXW.
Features:
Number of poles: 5
Cable: Ø5 - 8 mm
Case: Die-cast zinc casting
Traction exhaust: Polyacetal
Degree of protection: IP 65
Flammability class: UL 94 HB
Compliance standards: IEC 61076-2-103
Weldability: complies with IEC 68-2-20
Dimensions (WxHxD): 69x20x20 mm
