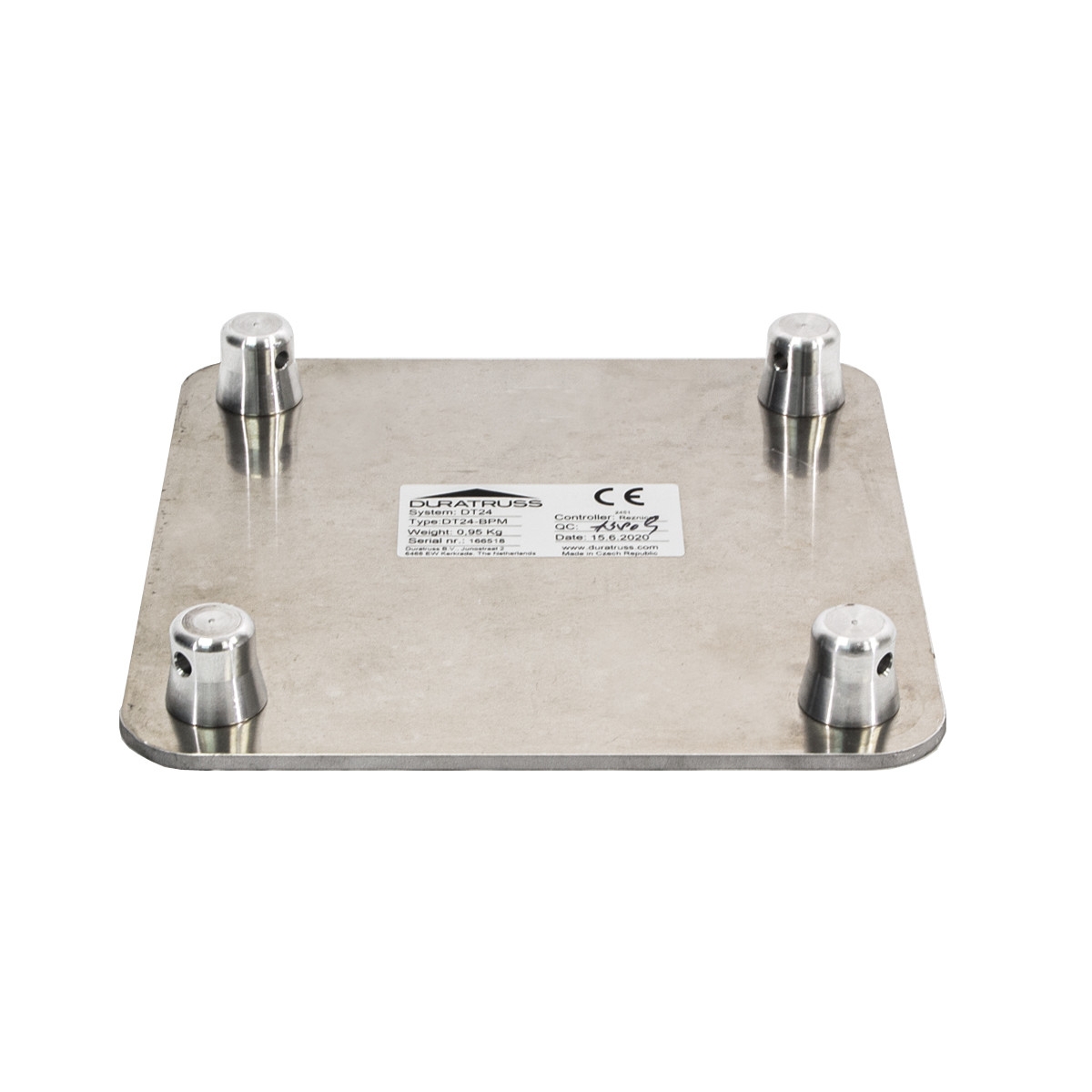

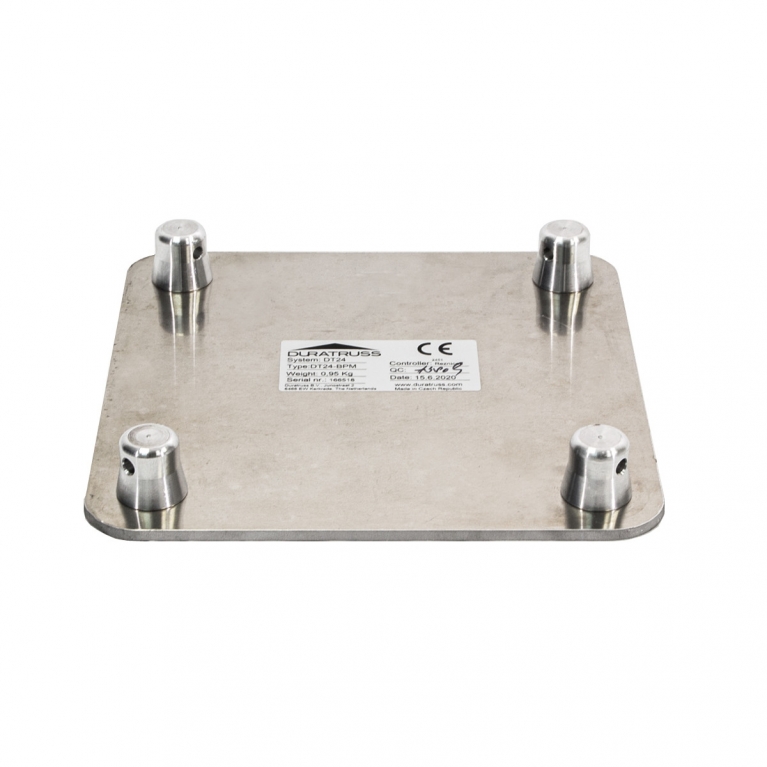

Base plate male DT 24-BPM

The DT24 series is a 4-point-trussing-system with conical coupler (spigot), trusspin and safety clip. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The four tubes are made of 35mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The system also includes cones, steel pins and safety clips. The system is from European production which is compatible to the most common systems in the market and is TÜV approved. Technical specs:
- Material: Aluminium EN-AW 6060 T66 (AlMgSi1)
- Length: 250 mm
- Width: 250 mm
- Height: 5 mm
- Weight: 1,2 kg
