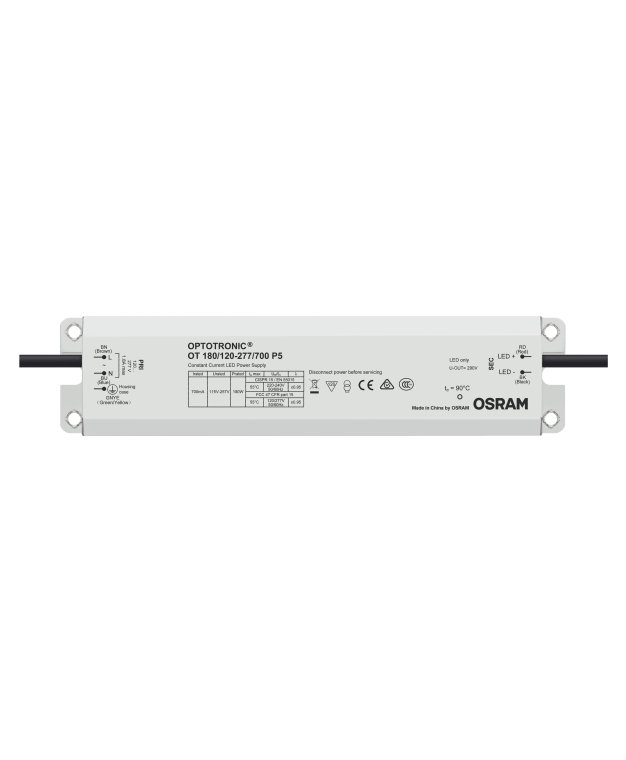

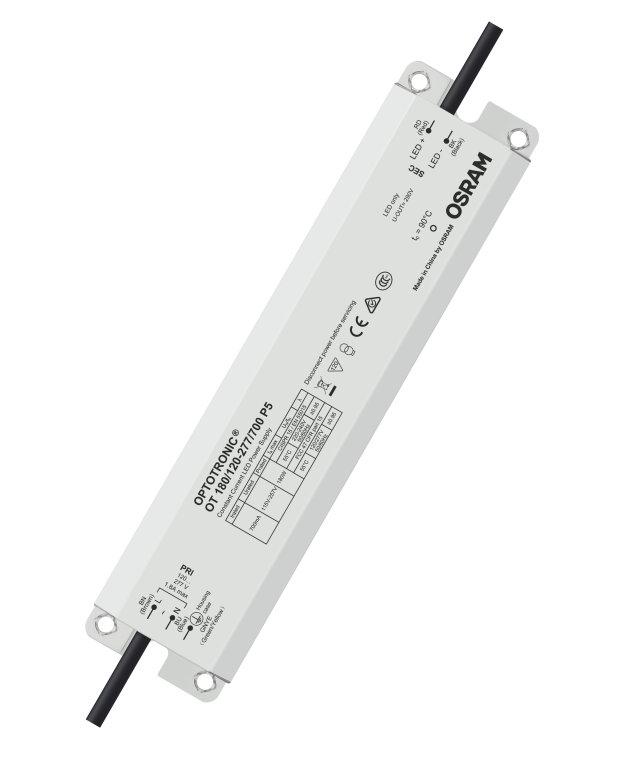

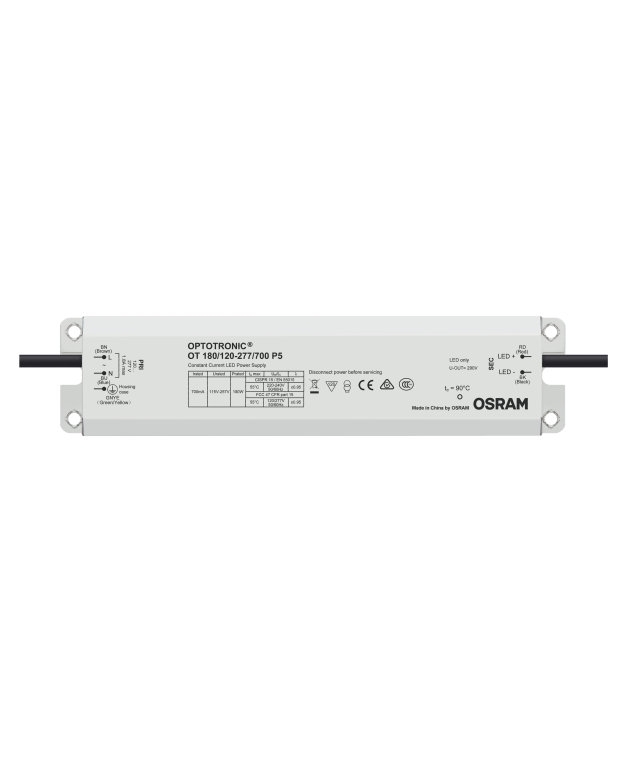

Led driver Optotronic 180/120 277/700 P5 not dimmable

Suitable for use outside in street lighting, urban applications and industrial lighting, and for use in luminaires of protection class I, this highly efficient and reliable power supply gives you high IP protection (IP65) and a wide operating temperature range.
Electrical data
Nominal voltage: 120…277 V
Input voltage: 108…305 V
Nominal current: 0.86 A
Mains frequency: 50…60 Hz
Power factor: λ 0.95/0.90
Total harmonic distortion: 10 %
Device power loss: 18 W
Inrush current: 110 A
Max. ECG no. on circuit breaker 10 A: 4
Max. ECG no. on circuit breaker 16 A: 7
Max. ECG no. on circuit breaker 25 A: 12
Surge capability (L/N-Ground): 6 kV
Surge capability (L-N): 6 kV
Nominal output power: 180 W
ECG efficiency: 90 %
Nominal output voltage: 115…257 V
U-OUT (working voltage): 290 V
Nominal output current: 700 mA
Output current tolerance: ±5 %
Galvanic isolation: basic
Dimension: 251x60x39 mm
