Electrified binaries 3 ignition

The electrified binaries of three-phase are systems with three circuits on the same line, suitable for ceiling, recessed and suspended applications and suitable for various environments such as museums, stores, apartments, offices and more.

The possibility to place these tracks in different schemes, without modifying the original system, can satisfy every lighting need. Moreover the lighting points can be increased, in order to be adapted to every lighting change. Mains voltage 230/250V – maximum 16 Ampere.

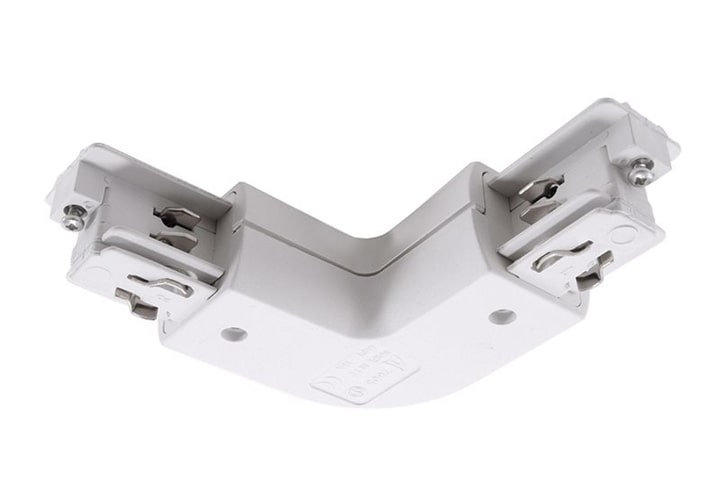

These systems include a wide accessory range, linear, angular, T, crossed and flexible connectors, which allow the match of more than one electric track. The accessory list can be consulted in the following products data sheets.

The continuity (among each element) of the earthing system is very important in order to have a correct installation of all accessories which contribute to the three-phase track composition. The earth conductors of each component must be placed consequentially.

The three-phase tracks can bear a weight of 2 Kg every 20 cm with a maximum distance of 80 cm among the fixing points. For a 5 Kg load every 20 cm, the fixing distance must be of 40 cm.

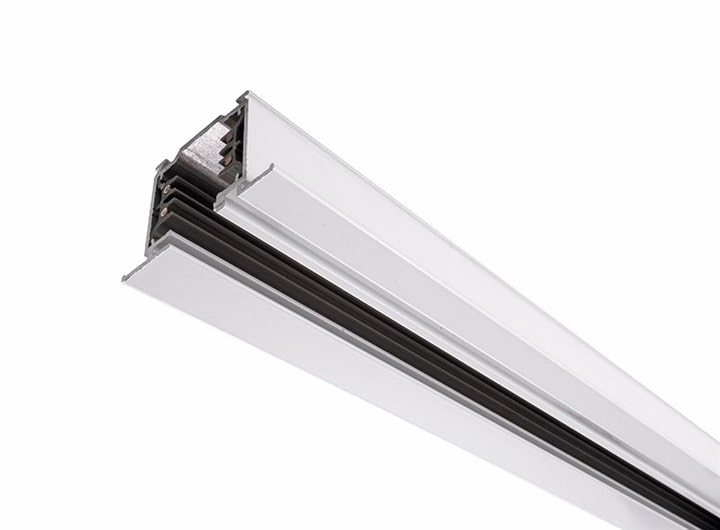

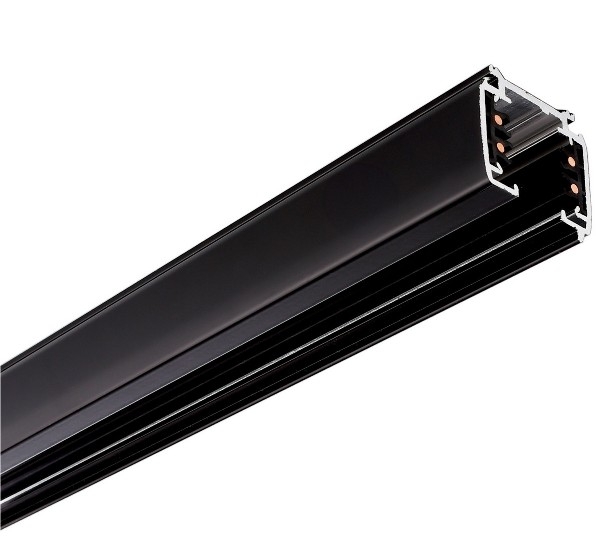

The three-phase tracks are available in two lengths (1 or 2 meters) and in three colours, depending on the chosen model. Available square, round, recessed, and black, white and gray colors.
