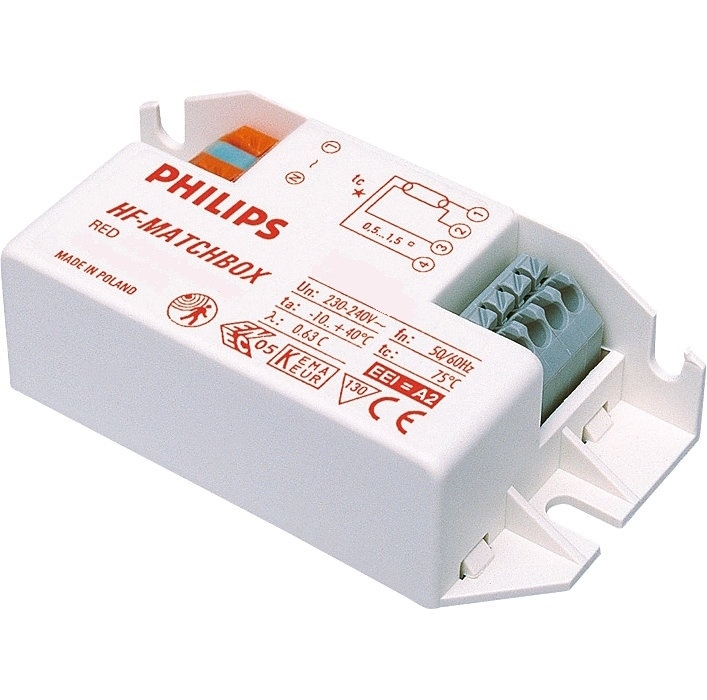

Ballast HF-M RED 109 SH TL/PL-S 230-240V

With a robust design and an energy efficiency index of A2, HF-Matchbox Red is an affordable, reliable, compact, lightweight and highfrequency ballast for use with system wattages below 25 W in combination with TL
mini, TL-D, TL5 and TL5c, PL-T/C, and PL-L/S lamps.
General Information
Lamp Type: TL/PL-S
Number of Lamps: 1 piece/unit
Number of Products on MCB (16A Type B) (Nom):159
Automatic Restart: Yes
Operating and Electrical
Input Voltage: 230 to 240 V
Input Frequency: 50 to 60 Hz
Ignition Time (Max): 0.45 s
Wiring
Connector Type Input Terminals: Insert
Color Input Terminals: Black
Color Output Terminals: Grey
Connector Type Output Terminals: Insert
Cable Length From Device to Lamp: 1.50 m
Input Terminal Cross Section: 0.50-1.50 mm²
Output Terminal Cross Section: 0.50-1.50 mm²
System characteristics
Rated Ballast-Lamp Power: 9 W
Mechanical and Housing
Housing: SH
Emergency Operation
Battery Voltage Lamp Ignition: 194-254 V
Approval and Application
IP Classification: IP 20
